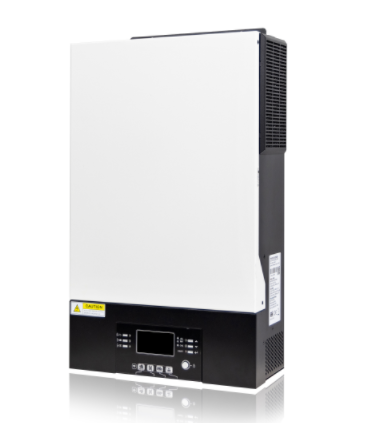

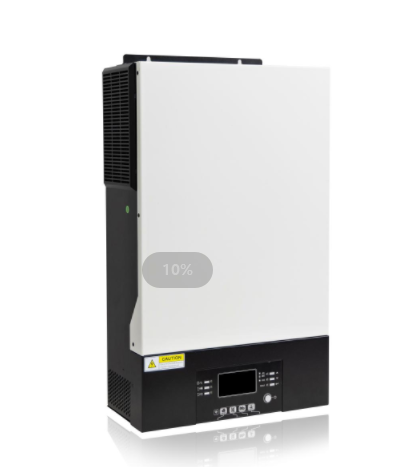

Hybrid Solar Inverter 5kw 3kw solar controller power high frequency inverters

MODEL	King 3K	King 5K
Rated Power	3000VA/3000W	5000VA/5000W
Parallel Capability	Up to 9 units	Up to 9 units
INPUT
Voltage	230 VAC
Voltage Range	110-280 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation	230 VAC ± 5%
Output THDv	≦ 3% for linear load, ≦ 8% for non-linear load
Surge Power	6000VA for 5 sec	10000VA for 5 sec
Efficiency (Peak)	93 % at Line Mode, 90% at Battery Mode
Transfer Time	0 ms
Waveform	Pure sine wave
BATTERY
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
Overcharge Protection	34 VDC	66 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT	MPPT
Maximum PV Array Open Circuit Voltage	145 VDC
Maximum PV Array Power	1500 W	4000 W
MPP Range @ Operating Voltage	30 ~ 115 VDC	60~115VDC
Maximum Solar Charge Current	60 A	80 A
Maximum AC Charge Current	60 A	60 A
Maximum Charge Current	120 A	140 A
PHYSICAL
Dimension, D x W x H (mm)	140 x 303 x 525
Net Weight (kgs)	13	13.5
Communication Interface	USB/RS232/RS485/Bluetooth/Dry-contact
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	0°C to 55°C
Storage Temperature	-15°C to 60°C
